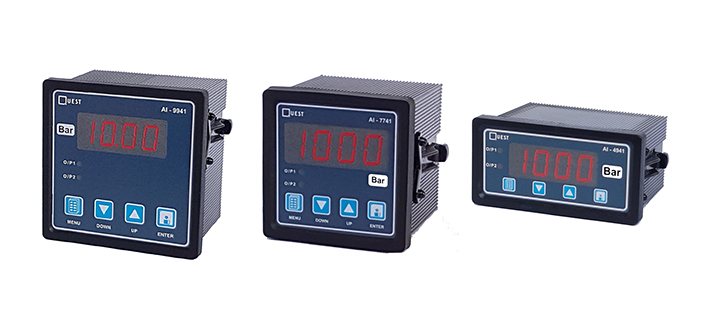

4 DIGIT PROCESS INDICATOR
MODEL NUMBER : 120
Process Indicator to accept analog process inputs of various types. Microcontroller based instrument with 4-digit, process indication. The unit can be scaled for both zero and span, to display in engineering units. The decimal point position is also selectable. Any process value can be programmed. Soft keys provided on front of the panel for easy setting with password protection.
| PROCESS INPUT | 0-5V DC, 1-5V DC, 0-10V DC, 2-10V DC, 0-20mA, 4-20mA |
| DISPLAY | 4 Digit 0.56” Seven Segment High Bright LED |
| DISPLAY RANGE | -1999 TO +9999 |
| DECIMAL POINT | Selectable (0, 0.0, 0.00, 0.000) |
| SENSOR EXCITATION | 12V DC ± 10 % for sensor supply |
| POWER SUPPLY | 230 V AC ± 10 % |
| INPUT SHIFT PARAMETER | -99.9 to +99.9 |
| INPUT FILTER | 1 to 30 Sec. |
| ENCLOSURE SIZE (mm) | 96X96X65, 72X72X65, 48X96X65 |
| AMBIENT TEMPERATURE | 0-60 °C |
| STORAGE TEMPERATURE | 0-70 °C |
| HUMIDITY | 0-95 % RH (non-condensing) |
