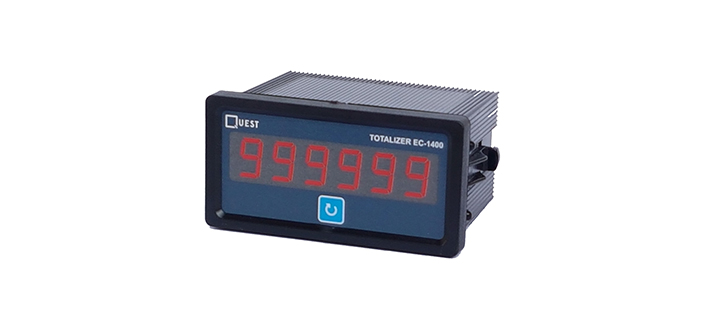

EVENT COUNTER
MODEL NUMBER : EC-1400
Event counter mainly used to estimate production quantity, counting event on external pulse provided. It is a six-digit counter with reset button provided on front of the panel. Count remains in memory for more than ten years, not resetting with loss of supply, if required. Instrument excepts multiple inputs for counting event. Single push button provided for these settings. Counting speed and division factor (Pre scaler) is programmable.
| INPUT (SELECTABLE) | Proximity Switch (PNP/NPN), Potential Free Contact or A/C pulse |
| DISPLAY | 6 Digit 0.56” Seven Segment High Bright LED |
| DISPLAY RANGE | 0 TO 999999 |
| PULSE/SECOND SETTING | 3, 30, 100, 1000, 2500 |
| PRE SCALER | Selectable |
| RESET | From front of panel key and power cut-off (Selectable) |
| MEMORY | Count retention on power failure |
| POWER SUPPLY | 230 V AC ± 15 % |
| ENCLOSURE SIZE (mm) | 48X96X65 |
| AMBIENT TEMPERATURE | 0-60 °C |
| STORAGE TEMPERATURE | 0-70 °C |
| HUMIDITY | 0-95 % RH (non-condensing) |
